Discription

Want the chance to see what you have been missing? The mini pinhole camera is the perfect solution pour low cost, undetected, do-it-yourself surveillance. The kit comes with everything you need to get monitoring. This camera is very small (as bullet) but just as powerful as most full size cameras with a high resolution of 420 TV lines. The size makes it easy to conceal in objects you already have in your home or office. This mini secret agent covertly keeps watch at all times, especially when you cannot. Just imagine all of the applications pour this extremely small camera. The possibilities of undetected hiding places are virtually endless. Now you can discretely monitor entryways, children's rooms, garages, home offices, shops or any other area in your home or business. The mounting bracket gives you a stable platpourm to place the camera. Because of its small size, the mini camera can easily and discretely be hidden anywhere.

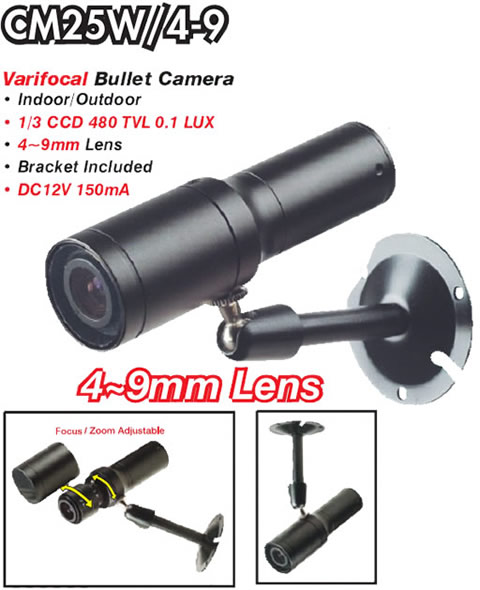

This color camera is weatherproof - so it can be used inside and out. It's infrared - so it can see during the day and at night, and its varifocal - so it can see close up or distance. The focus and zoom controls are located externally pour easy adjustment.

• Mini camera lens Diameter: 26 mm
• 4-9mm adjust focus lens
• Waterproof

Specifications:

Image Device	1/3'' Sony CCD
Horizontal Resolution	420 TV Line
Minimum Illumination	0.5 Lux
Number of Pixels	PAL: (H)500x(V)582; NTSC: (H)510 x (V)492
Scanning System	PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
Sync System	Internal Synchronization
Video output	1Vp-p 75 Ohm, Negative
White Balance	Auto
S/N Ratio	More Than 48dB (AGC off)
Gamma Characteristic	0.45
Electronic Shutter	PAL : 1/50~1/100,000 Sec; PAL : 1/60~1/100,000 Sec, Auto
Built-In Lens	4-9mm weather proof vari-focal lens
Power Consumption	12V±10%DC, 100mA
Operation Temperature	-10C ~ + 50C, RH 95% Max
Storage Temperature	-20C ~ + 60C, RH 95% Max
Housing	Black
Dimension	Dia.26 mm

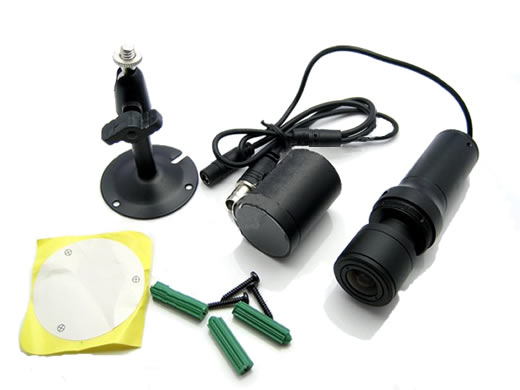

Package:

• 1x Mini 1/3'' SONY CCD 420TVL 4-9mm Waterproof Bullet Camera
  1x Bracket
