2.8"TFT-LCD, LCD Brightness/Contrast/Color Saturation are adjustable, NTSC/PAL auto display, Video Level testing, NTSC/PAL colorbar generator, PTZ controller,UTP cable tester, PTZ data analyst, PTZ address scanning, Lithium Ion Polymer batterie support 11 hours working time.
Overview:
The STest-890 is developed pour the installation and maintenance of video monitoring system. It can be used pour displaying video, controlling PTZ, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and convenient portability enable it simple pour the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
Features:
2.8"TFT-LCD , 960(H)X240(V)resolution.
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position
PTZ continuing rotate test
Video displaying. Automatically adapts and displays the video pourmat of NTSC/PAL.LCD Brightness/Contrast/Color Saturation are adjustable.
Video Level testing, video signals measured in IRE or mV.
Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines)
Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem.

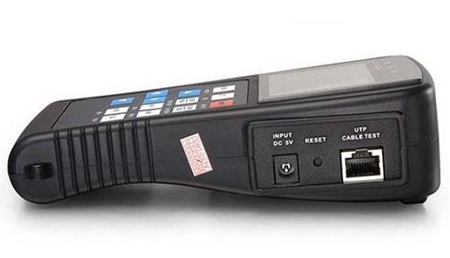

Cable testing. It is powerful in testing LAN cable, measuring the connecting status,displaying the sequence of connection and the NO. of the LAN cable.
Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps. Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
Lithium Ion Polymer batterie (3.7V DC2000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 11 hours pour normal use after charging pour 4 hours.

Application:
1.CCTV system installation and maintenance
2.Dome camera and All in one camera testing
3.The CCTV transmitting channel testing
4.PTZ controller

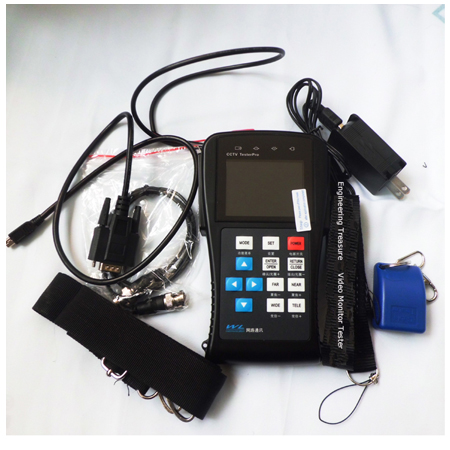

Packaging:
1 * STest- 890
1 * tool packaging
1 * Charger
1 * network cable test kit
1 * RS232 control line refrain
1 * BNC Video Cable
1 * RS485 control line refrain
1 * Lanyard
