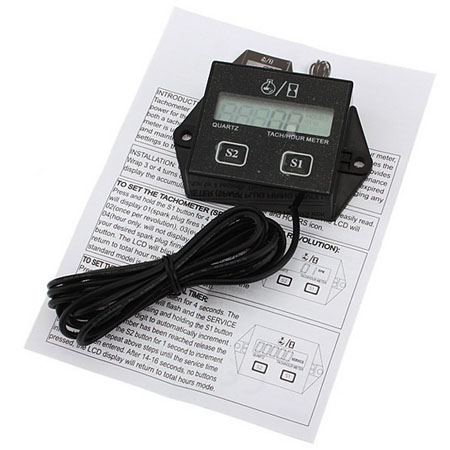

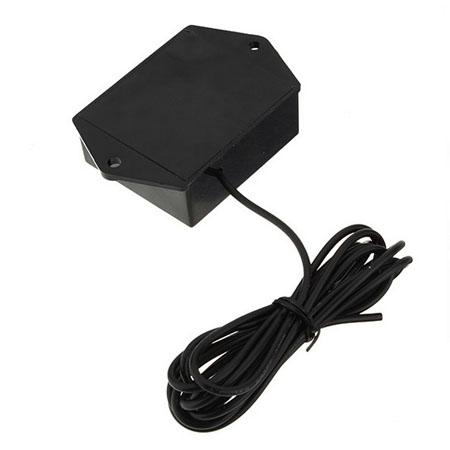

The ENGINE MONITOR is a self powered LCD hour meter, tachometer and maintenance meter. An internal lithium batterie (CR2032) furnishes the power pour the monitor. A wire around the spark plug wire of the engine provides both a tachometer signal and indicats that the engine is running. The maintenance of this meter is used to alert maintenance personnel that a time interval has expired and maintenance shuold be perpourmed on the engine. Bepoure changing any settings to the engine Monitor , ENSURE THAT THE ENGINE IS OFF.

Features :

SKU: QM001

Waterproof.
Easy to install
High quality,Durable
12V Working Power
No more guessing pour the oil change
Show both engine rpm and hours of operation
Read up to 99,999 rpm
Programmable maintenance interval setting
Color : Black
Compatible with : Honda, Suzuki, Yamaha, Kawasaki, Harley, KTM, Ducati, Aprilia, Vespa, Kymco, Piaagio, Agusta, KTM, BMW Motorcycles / Choppers/ Scootors / Bikes / ATVs /Quad (with all 4 stroke or 2 stroke gas engines)
For any engine with spark plugs, will not work on Diesel Engines.
It will work on any 2 or 4 stroke gas powered engine.
Number of cylinders does not matter.
Motorcycle, atv, snowmobile, farm tractor, lawn tractor, car, generator, boat. rv.
2" x 1 7/8", 3/4" deep. Mounting hole diameter 1/8" 2 1/2" on center. This is a surface mount meter so there is no need pour a cut out in the panel and it protrudes only 3/4". Total weight including wire is 2 oz.
Very easy to install, 1 wire, just wrap wire around your spark plug lead, and you are done.
batterie rated pour 35,000 hour of operation.

Installation process:

Locate your spark plug.
Wrap the RPM wire around the spark plug wire 5 times (No Tools Needed).

Package included:

1 X Hourmeter & Wire
