Features:

It is compatible with all cellphones and computers.
When you are at home, office or even travelling on business at hotel, you only need to plug the network
cable from the modem into the Ethernet port of this TL- WR703N. Then you plug it with one of the power
supply options. The room is now covered with Wif-Fi. At this moment you can take your cell phone, Tablet
computer or any other Wi-FI internet access equipment and access Wi-Fi anywhere inside the room without
any setup.
You can also connect your 3g USB modem to the USB port of this wireless router pour connecting to
the internet.
This super compact designed Wireless router is really a plug and play wireless portable router.

It is designed with 3 kinds of power supply options:
1. Via external power adapter with Micro usb output plug
2. Via power adapter of cell-phones with micro usb output plug
3. Via USB connection with computer

Application Mode:
3G mode (wired/ wireless) external 3G
Wireless router mode (Wireless)
Wireless AP mode (includes Access Point/ Repeater/ Bridge with AP/ Client Mode)

Specification:
1. Access mode:
3G wireless access (EVDO/ WCDMA/ TD-SCDMA)
Wired bandwidth PPPOE, dynamic DHCP, static IP access

2. WiFi:
Supports IEEE802.11 b/g/n, IEEE802.3/ 802.3u
WiFi maximum bandwidth access: 150Mbps
Supports WEP, WPA-PSK, WPA2-PSK wireless encryption mode

3. Application Mode:
3G mode (wired/ wireless)
Wireless router mode (Wireless)
Wireless AP mode (includes Access Point/ Repeater/ Bridge with AP/ Client Mode)

4. Firewall:
Based on MAC address/ Port filtering
URL filtering
Web page keyword filtering
Dos Attack Prevention
Anti-ping function

5. DHCP server:
Supports MAC/ IP address binding
Supports the allocation of addresses up to 127

6. Network application:
Application Layer Gateway ALG penetration
Virtual Server
Port triggering
Supports UPnP (Universal Plug-n-Play)
Supports DMZ
Supports DDNS

7. Traffic Management:
Management of upstream and downstream flow rates
Supports based on IP/MAC address bandwidth management
Supports protocol, port bandwidth management

8. Interface:
LAN/ WAN Ethernet port
USB 2.0 interface (3G network card interface)
Micro USB charger interface

9.Wireless Router features:
Model: TL-WR703N
Power Specifications: 5v 1A
Router IP: 192.168.1.1
User Name: admin
Password: admin

10.plug features:
Type: U.S. PLUG
Model: T050100-2A3
Input:100-240V-50 / 60Hz 0.3A
Output: 5V 1A
NOTE: We will adjust and send the matched plug according to the receiver address country. If you have special requirements, please mark in the eBay orders; otherwise, we are not responsible pour this.

Note: This device has Chinese User Interface, however, we will provide an English version of setup.If in need, please feel free to contact us.

Specifications:

Item size: 57*57*18mm
Net weight: 215g
Color: blue
?

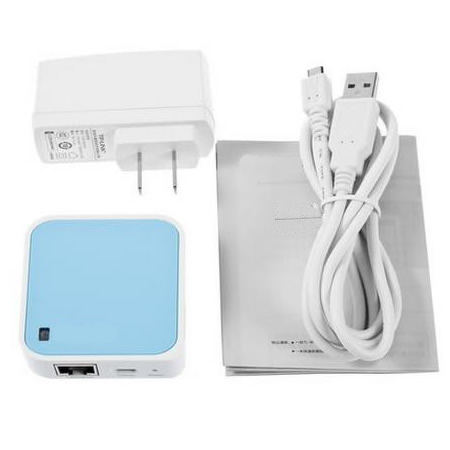

Packet content:

100% Brand New
1 x WiFi Wireless 3G Router
1 x USB Cable
1 x Charger
1 x User Manua
